Connect GitLab repo & create CodeBuild project

Objective

Configure two CodeBuild projects (frontend and backend) and a trigger from GitLab Release events that starts CodePipeline. CodePipeline invokes CodeBuild using the repository’s existing frontend-buildspec.yml and backend-buildspec.yml, and then deploys to ECS.

AWS Resources

  • CodeBuild projects:
    • Frontend: Source = CodePipeline; Buildspec = frontend-buildspec.yml
    • Backend: Source = CodePipeline; Buildspec = backend-buildspec.yml
  • CodePipeline (later step) consuming artifacts and deploying to ECS

Create CodeBuild Projects & Connect GitLab Repository

  1. In the creating new CodeBuild Project configuration section, select Default project. CI/CD overview placeholder

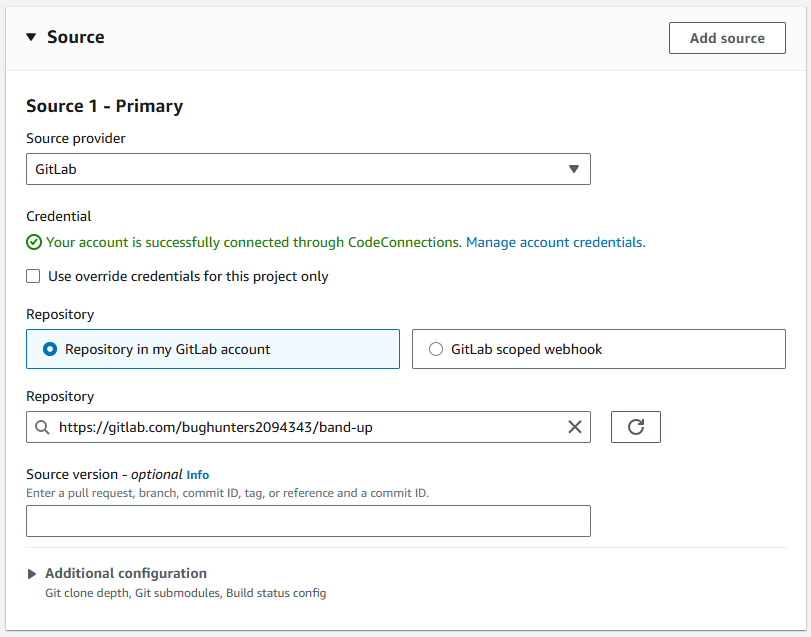

  2. In the Source section, choose GitLab and Band-Up repository. CI/CD overview placeholder

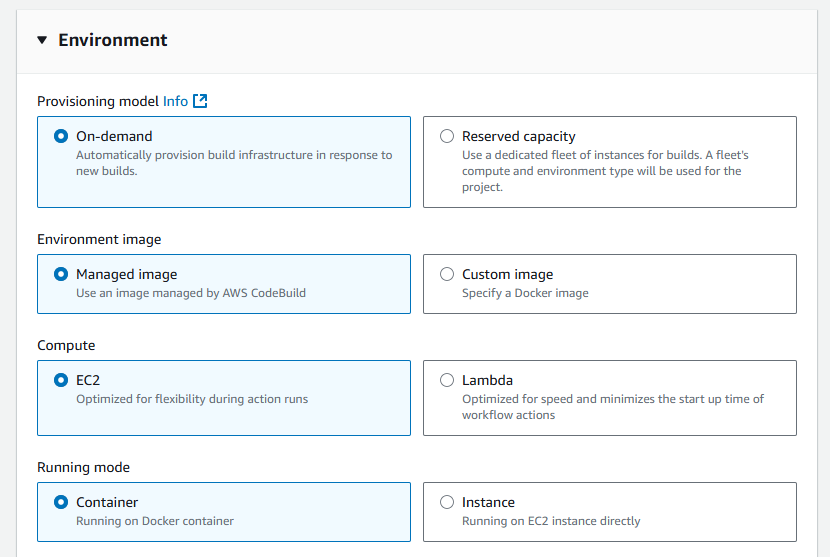

  3. Leave default configurations for Environment. CI/CD overview placeholder

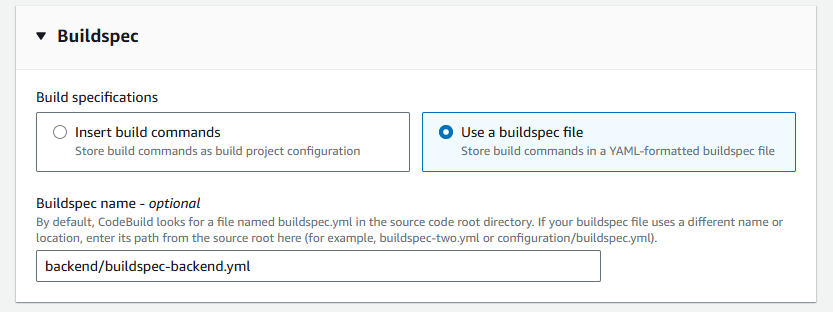

  4. Specify Band-Up own buildspec for frontend/backend like the following image: CI/CD overview placeholder
  5. Submit and create the other frontend/backend CodeBuild project likewise.

Summary

You now have two CodeBuild projects (frontend and backend) ready to be invoked by CodePipeline. A GitLab Release event can trigger CodePipeline, which then runs each project with its corresponding frontend-buildspec.yml and backend-buildspec.yml. In subsequent steps, CodePipeline will take the build artifacts and deploy to ECS.
