Create ElastiCache (Redis/Valkey)

In this step, we provision an in-memory data store to handle session management and caching for the backend. We will use Amazon ElastiCache with the Valkey engine (a high-performance, open-source fork of Redis supported by AWS).

1. Configure Security Group

First, create a Security Group to allow the backend to communicate with the cache cluster.

  1. Navigate to EC2 > Security Groups > Create security group.
  2. Name: redis-sg.
  3. Inbound rules: Allow Custom TCP traffic on port 6379 from the ecs-backend-sg.

(Note: Ensure this is created before proceeding to the ElastiCache console).

2. Create Subnet Group

We need to define which subnets the cache nodes will reside in.

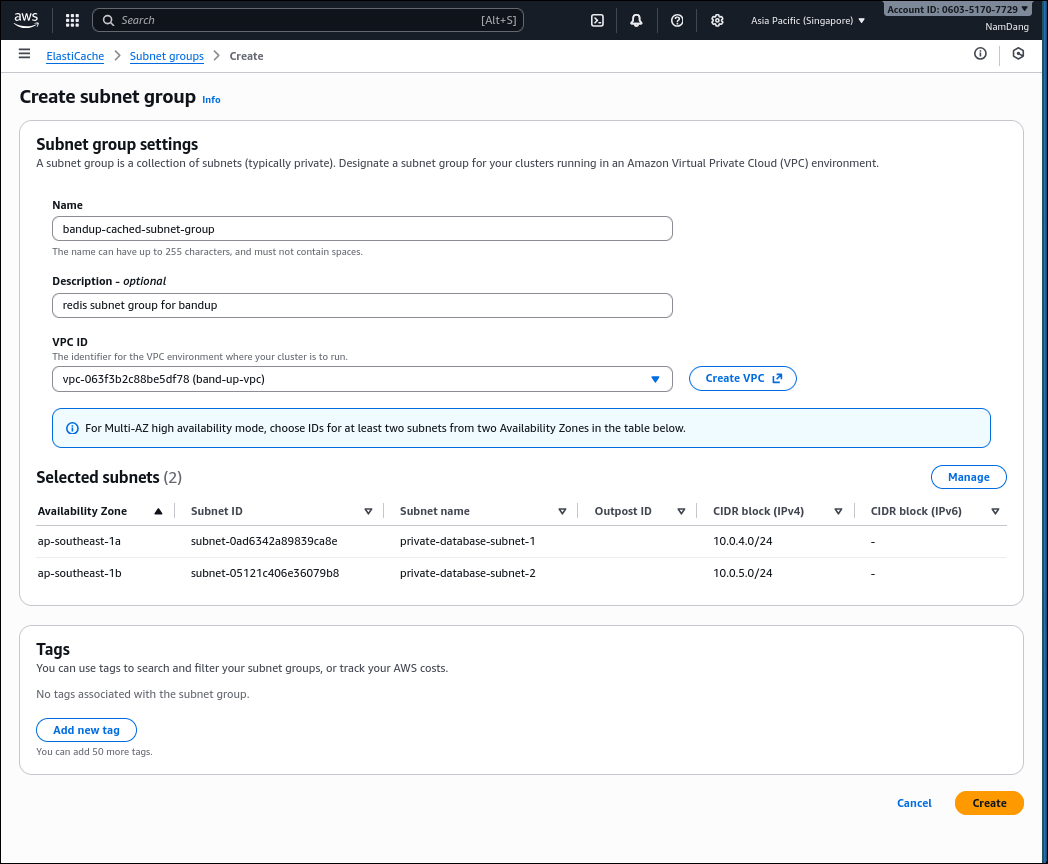

  1. Navigate to Amazon ElastiCache > Subnet groups > Create subnet group.
  2. Name: bandup-cached-subnet-group.
  3. VPC: Select band-up-vpc.
  4. Subnets: Select private-database-subnet-1 and private-database-subnet-2 (Availability Zones ap-southeast-1a and 1b).

Redis Subnet Group

3. Create ElastiCache Cluster

Now we provision the cache cluster.

  1. Navigate to ElastiCache > Caches > Create cache.
  2. Engine: Select Valkey - recommended (Compatible with Redis OSS).
  3. Deployment option: Select Node-based cluster (Gives more control over instance types).
  4. Creation method: Cluster cache.

Engine Selection

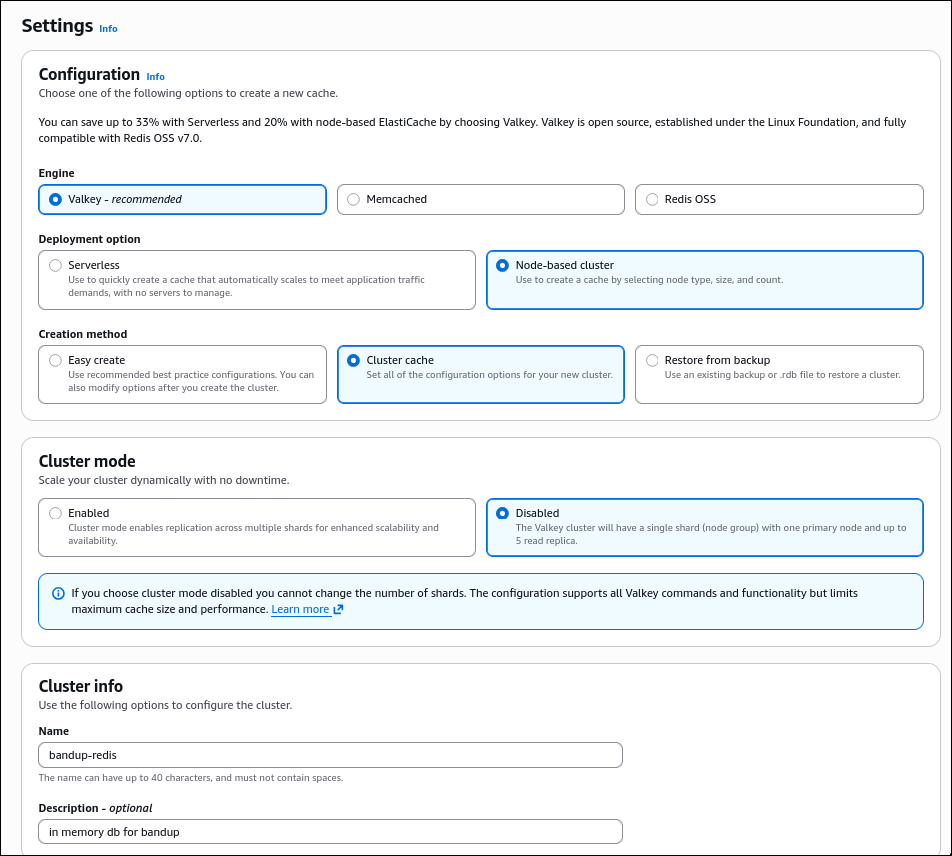

  1. Cluster settings:
    • Cluster mode: Disabled (Simple primary-replica structure is sufficient).
    • Name: bandup-redis.
    • Description: in memory db for bandup.

Cluster Settings

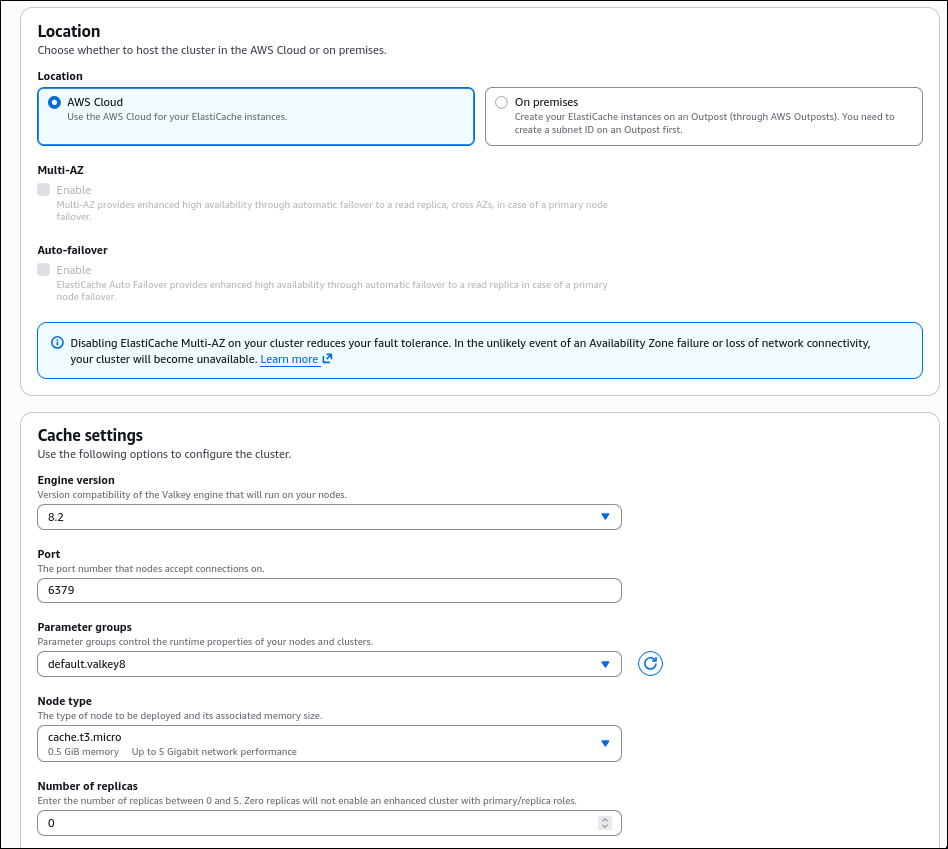

  1. Node configuration:
    • Node type: cache.t3.micro (Cost-effective for testing).
    • Number of replicas: 0 (Standalone node for this workshop).

Node Configuration

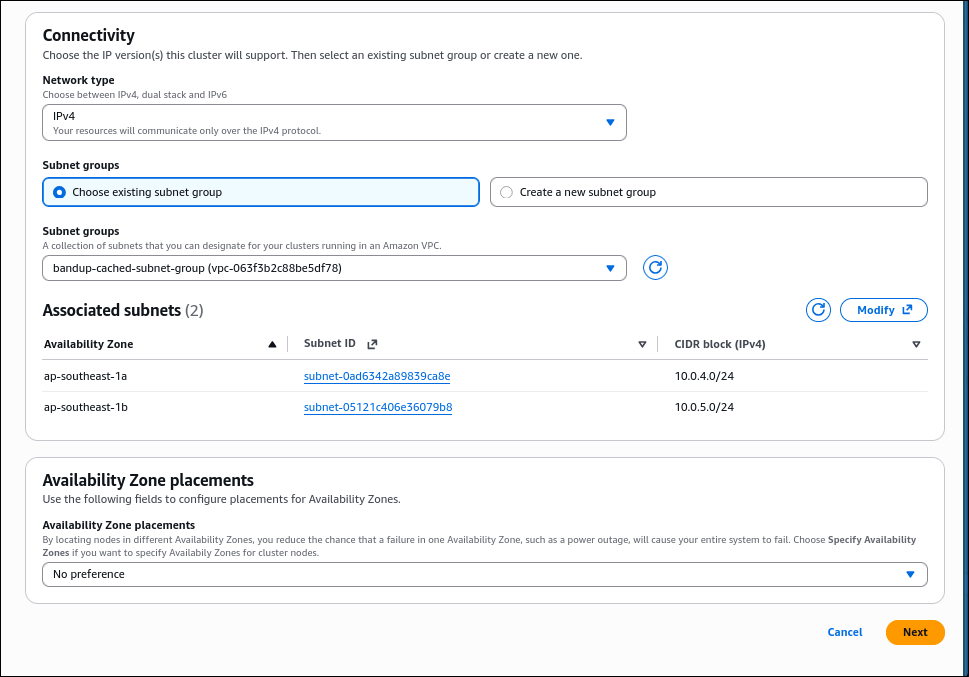

  1. Connectivity:
    • Network type: IPv4.
    • Subnet groups: Select bandup-cached-subnet-group.

Connectivity Settings

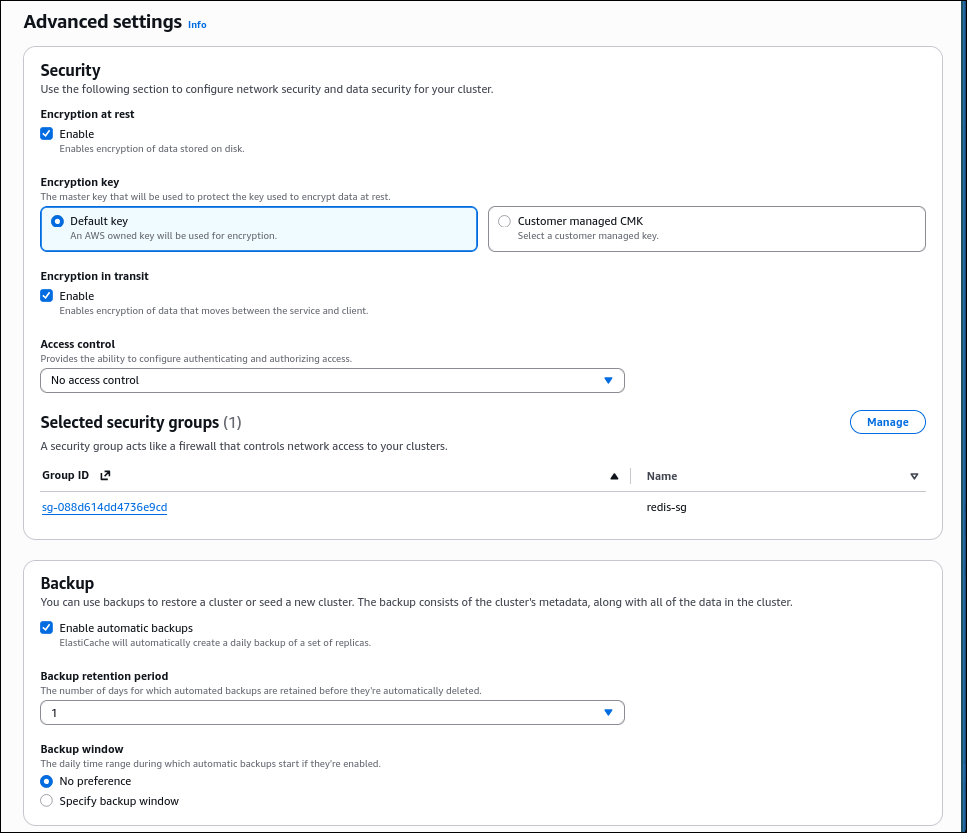

  1. Security & Encryption:
    • Encryption at rest: Enabled (Default key).
    • Encryption in transit: Enabled.
    • Access control: No access control (We rely on Security Groups).
    • Security groups: Select redis-sg created earlier.

Security Settings

  1. Backup: Enable automatic backups (Retention: 1 day).
  2. Click Create.

The cluster status will change to Creating. Once Available, note down the Primary Endpoint (ending in ...cache.amazonaws.com:6379) to use in the backend configuration.
