Setup ECR & Push Image

In this step, we will containerize the Spring Boot Backend and push the optimized Docker image to Amazon ECR.

1. Dockerfile Strategy

For the Backend, we utilize a Multi-Stage Build strategy with eclipse-temurin:21 (Java 21). This ensures a small and secure final image.

  • Stage 1 (Deps): Resolves and downloads Maven dependencies.
  • Stage 2 (Package): Builds the application and extracts the Spring Boot Layered Jar. This splits the application into layers (dependencies, spring-boot-loader, application code), allowing Docker to cache unchanged layers (like dependencies) effectively.
  • Stage 3 (Final): Copies the extracted layers into a lightweight JRE image. It also creates a non-privileged user appuser for security.

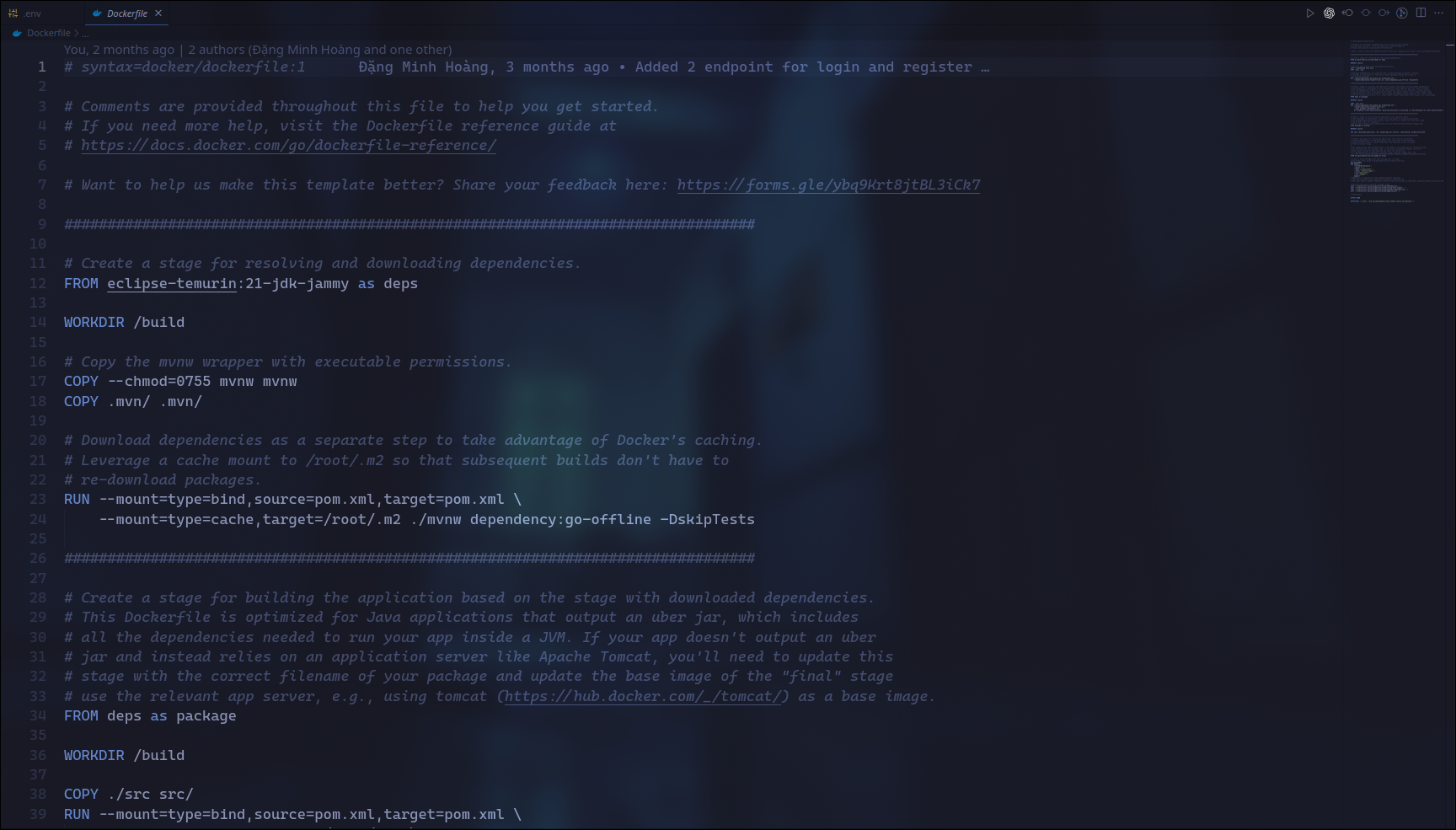

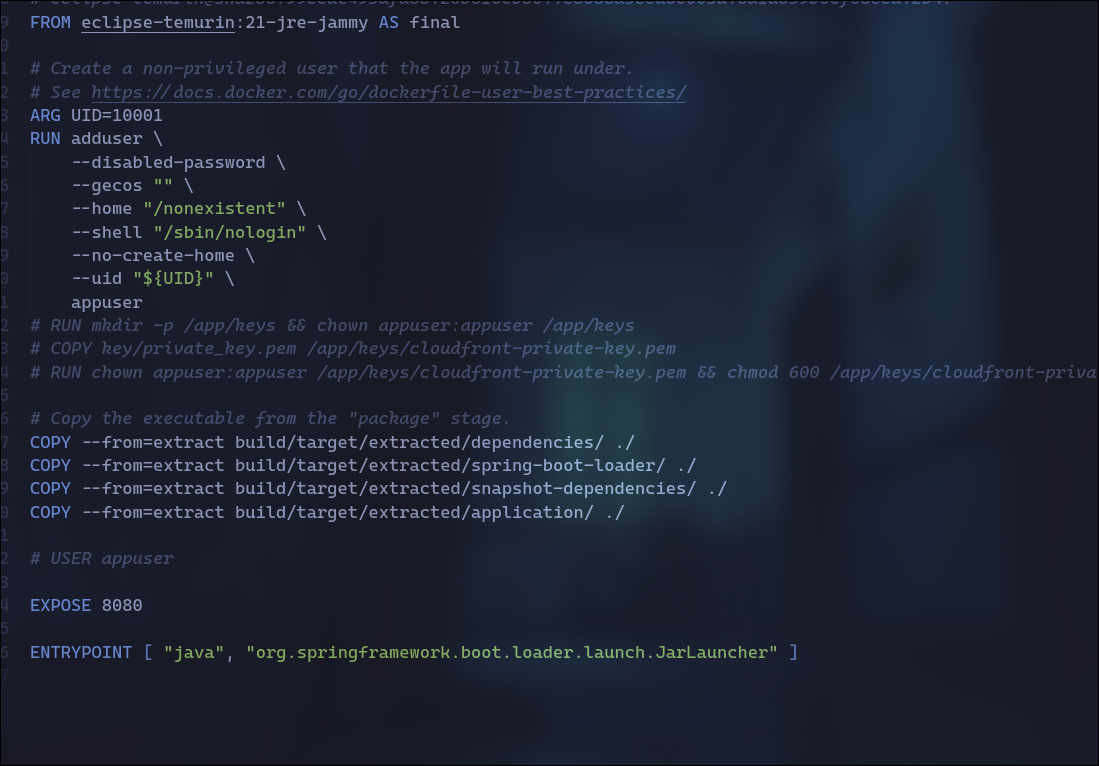

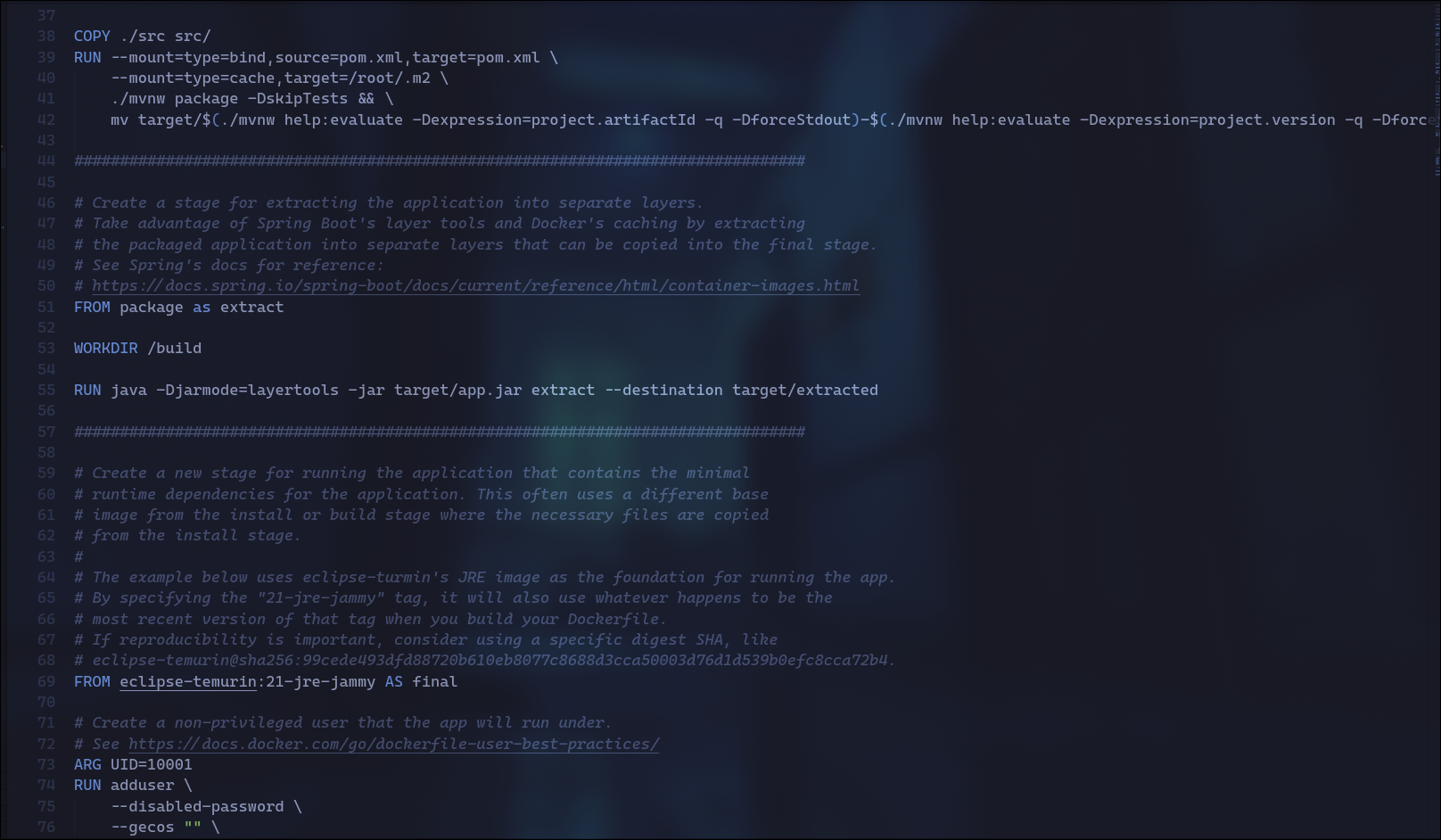

Dockerfile Stage 1 - Dependencies Dockerfile Stage 2 - Layer Extraction Dockerfile Stage 3 - Final Image

2. Build Docker Image

Run the build command in the backend project root. We tag the image as band-up-backend.

docker build -t band-up-backend .

Docker will execute the stages defined above.

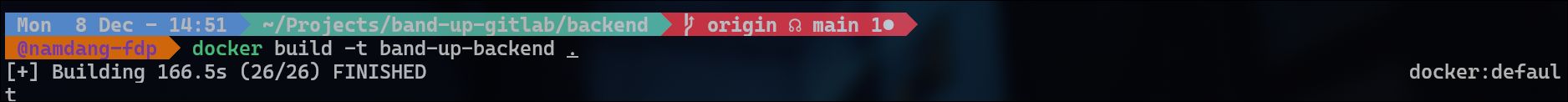

Build Backend Process

3. Create ECR Repository

We need a repository to store this image.

  1. Navigate to Amazon ECR > Create repository.
  2. Repository name: band-up-backend (Ensure this matches your push command).
  3. Visibility: Private.
  4. Image tag mutability: Mutable.
  5. Click Create repository.

4. Push Image to ECR

Once the image is built and the repository is ready, proceed to push.

Step 1: Tag the Image Tag the local image with a version number (e.g., v1.0.0).

docker tag band-up-backend:latest [Account-ID].dkr.ecr.ap-southeast-1.amazonaws.com/band-up-backend:v1.0.0

Step 2: Push to ECR Upload the layers to AWS.

docker push [Account-ID].dkr.ecr.ap-southeast-1.amazonaws.com/band-up-backend:v1.0.0

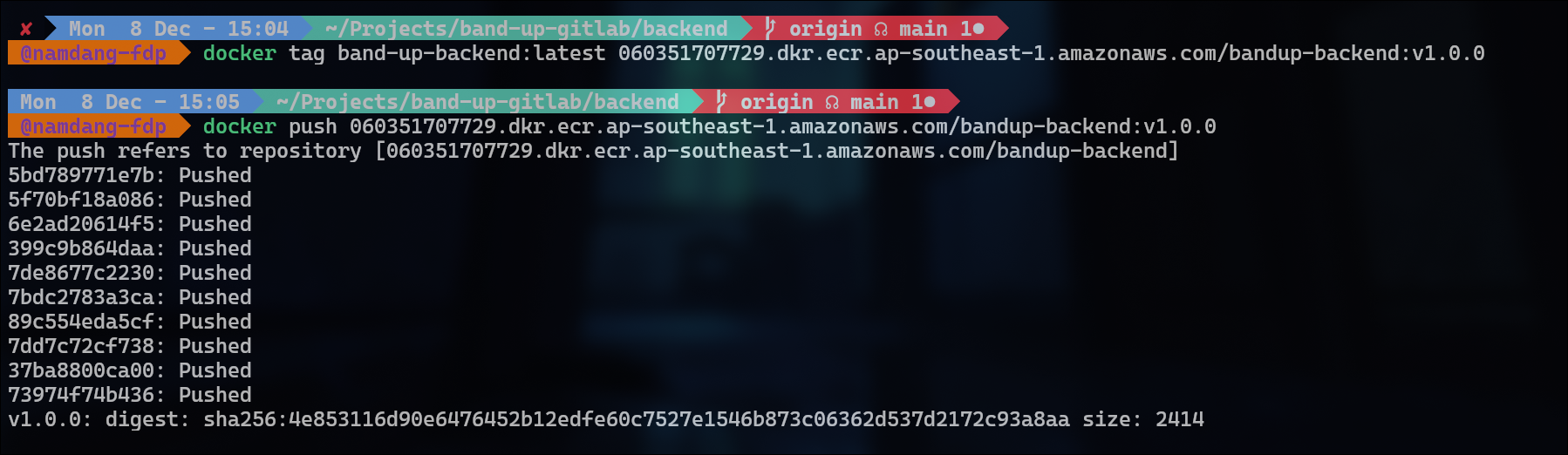

Push Backend Image

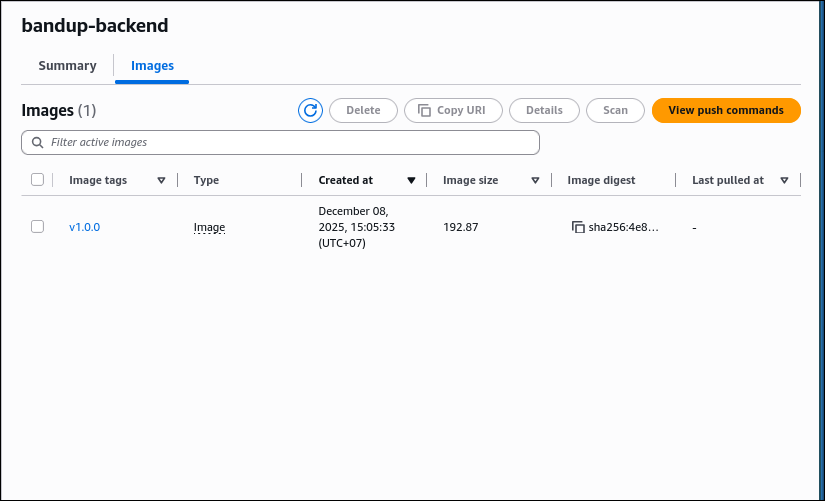

5. Verify

Navigate to the Amazon ECR Console and select the bandup-backend repository. You should see the image tagged v1.0.0.

Verify Backend Image
