Configure Security Group

Our Frontend containers run in Private Subnets. To allow them to receive traffic, we must configure a Security Group that acts as a firewall.

For security best practices, we will only allow traffic from the Application Load Balancer (ALB) on port 3000. Direct access from the internet or other sources will be blocked.

1. Create Security Group

1. Navigate to EC2 Dashboard > Security Groups > Create security group.
2. Basic details:
   • Security group name: ecs-private-sg.
   • Description: security group for ecs.
   • VPC: Select band-up-vpc.

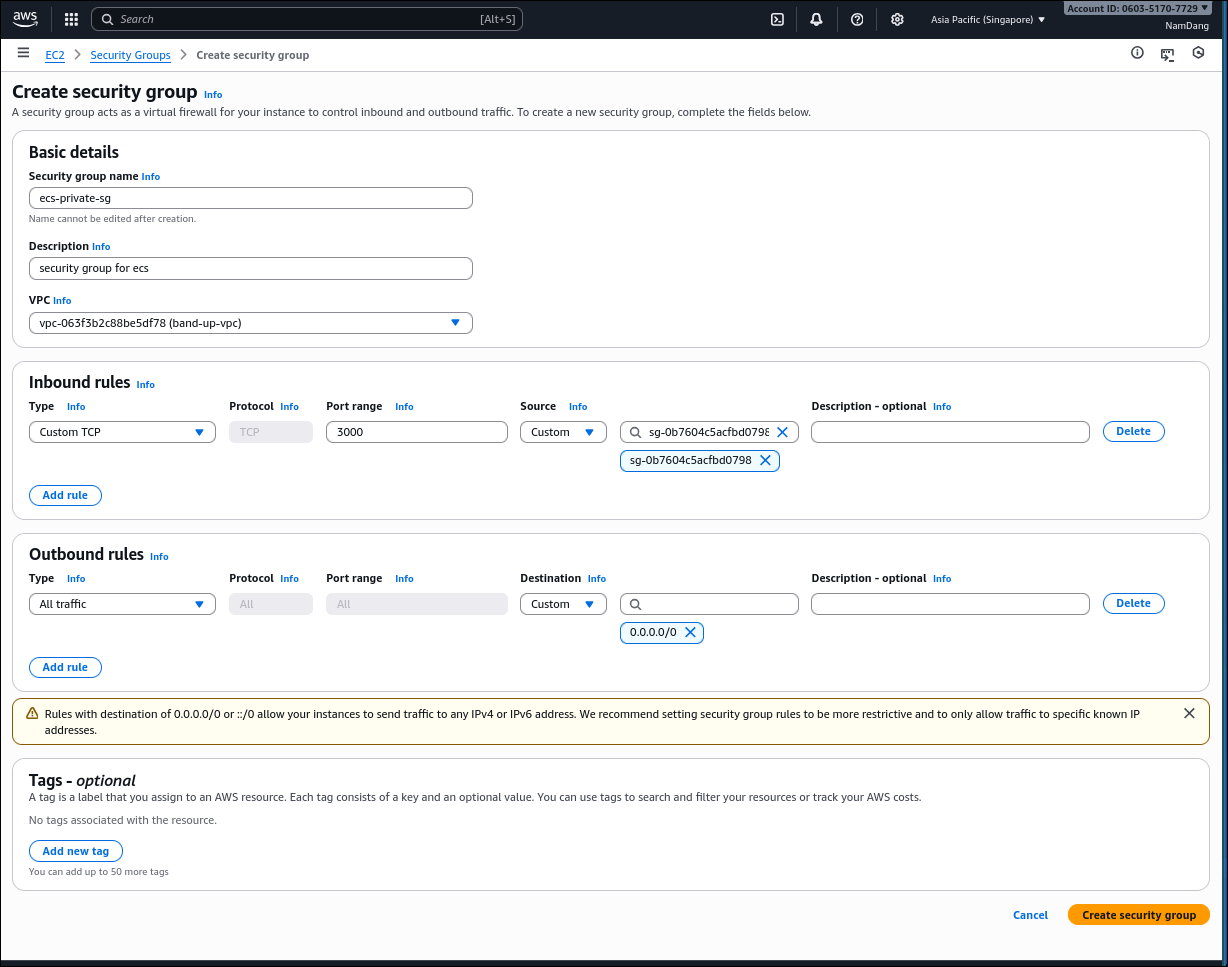

2. Configure Inbound Rules

This is the most critical step. We need to allow the ALB to talk to our Next.js application.

1. Inbound rules: Click Add rule.
   • Type: Custom TCP.
   • Port range: 3000 (The port our Next.js app listens on).
   • Source: Select Custom and choose the Security Group ID of your ALB (e.g., alb-sg).
     • Note: By selecting the ALB’s Security Group ID instead of an IP range, we ensure that only traffic originating from our Load Balancer is accepted.

2. Outbound rules: Leave the default settings (Allow all traffic) to enable the container to download packages or communicate with external APIs.
3. Click Create security group.

The Security Group is now ready to be attached to our ECS Tasks in the next step.
