VPC Endpoints Setup

To ensure security, our backend services running in Private Subnets should not access key AWS services over the public internet. Instead, we use AWS PrivateLink (VPC Endpoints) to keep this traffic within the AWS network.

We will create 4 Endpoints:

  • Interface Endpoints: For ECR (Docker & API) and CloudWatch Logs.
  • Gateway Endpoint: For Amazon S3.

1. Create Interface Endpoints (ECR & CloudWatch)

We will start by creating the endpoint for ECR Docker (ecr.dkr). The process is identical for ECR API (ecr.api) and CloudWatch (logs).

Step 1: Service Selection

  1. Navigate to VPC Dashboard > Endpoints > Create endpoint.
  2. Name tag: ecr-endpoint (for Docker).
  3. Service category: Select AWS services.
  4. Services: Search for ecr.dkr and select com.amazonaws.ap-southeast-1.ecr.dkr.

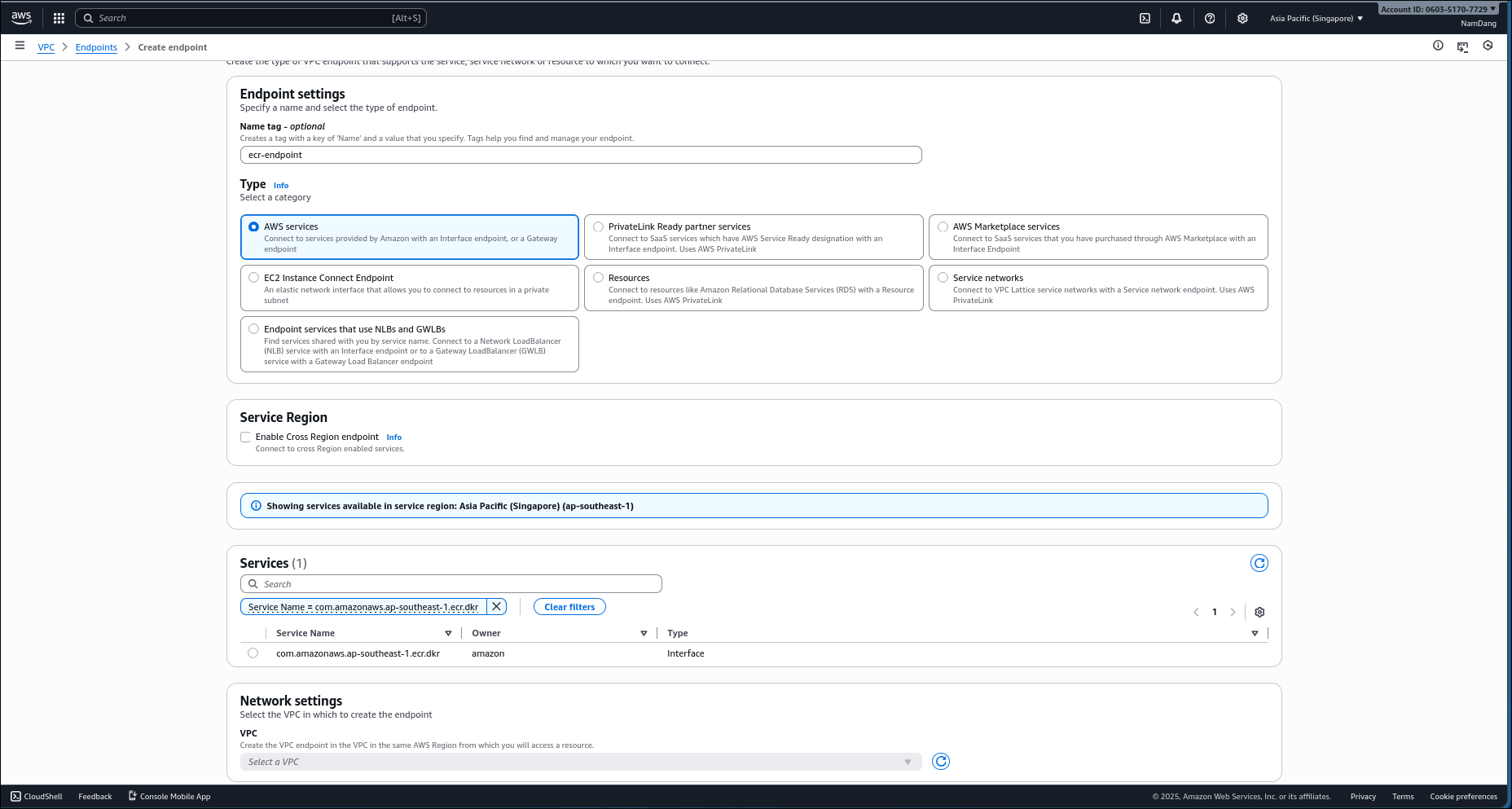

Select ECR Service

Step 2: VPC & Subnets

  1. VPC: Select band-up-vpc.
  2. Subnets: Select the Availability Zones and choose the Private Subnets (private-app-subnet-1 and private-app-subnet-2).
    • Note: This creates Elastic Network Interfaces (ENIs) in your private subnets to serve as entry points.

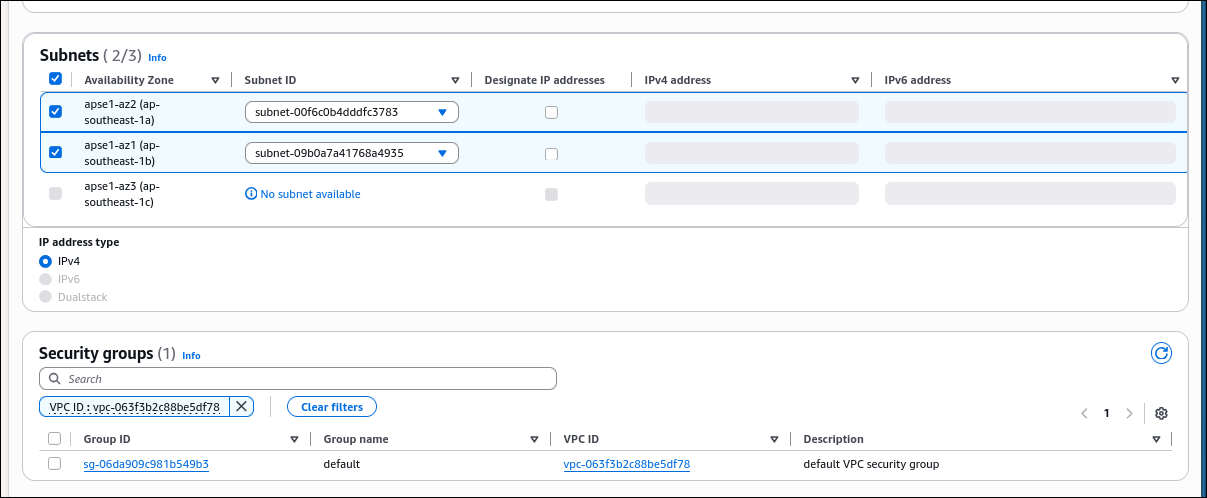

Select Subnets

Step 3: Security Group

  1. Security groups: Select the Security Group that allows HTTPS (Port 443) traffic from your VPC.
    • For this workshop, you can use the default security group if it allows inbound traffic from within the VPC.

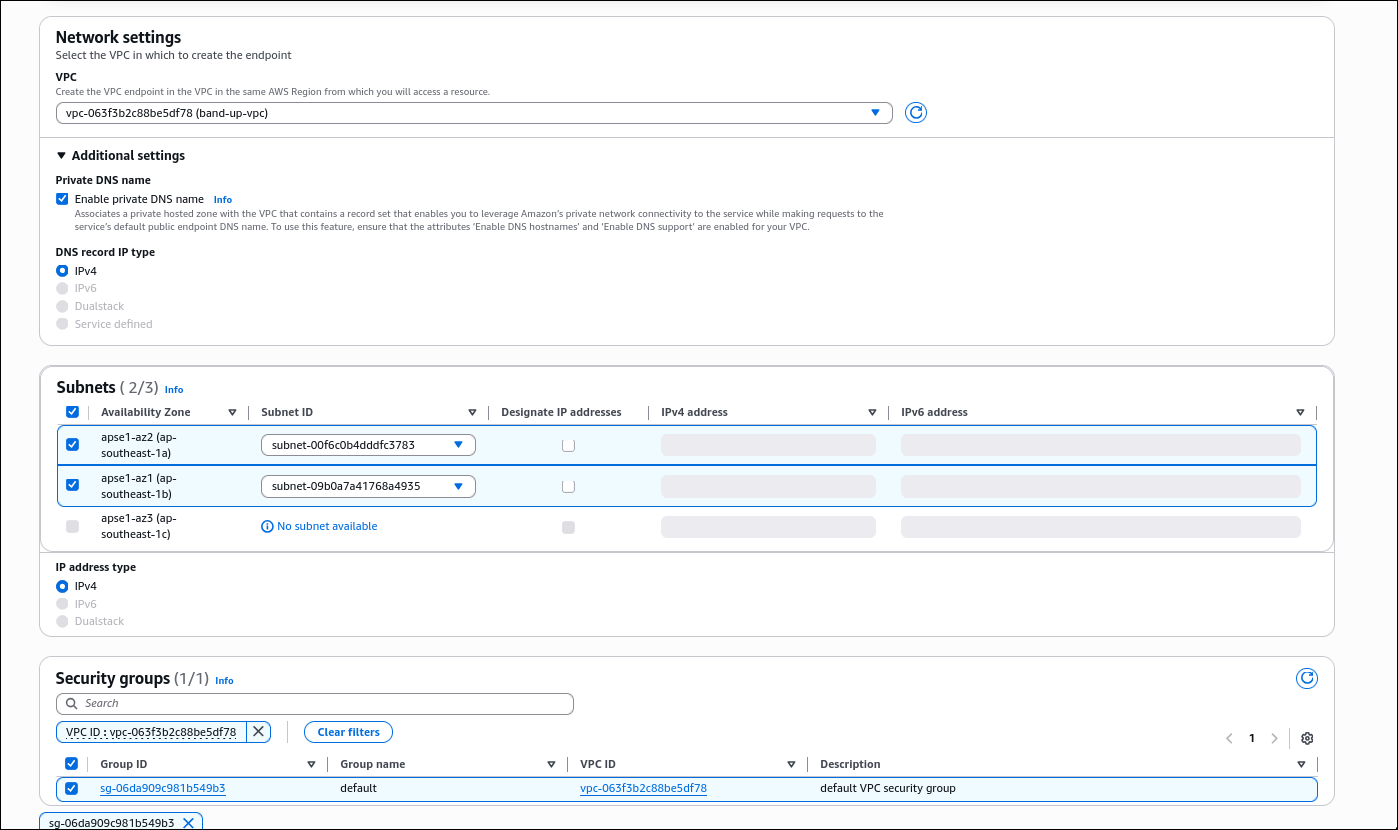

Select Security Group

  1. Click Create endpoint.

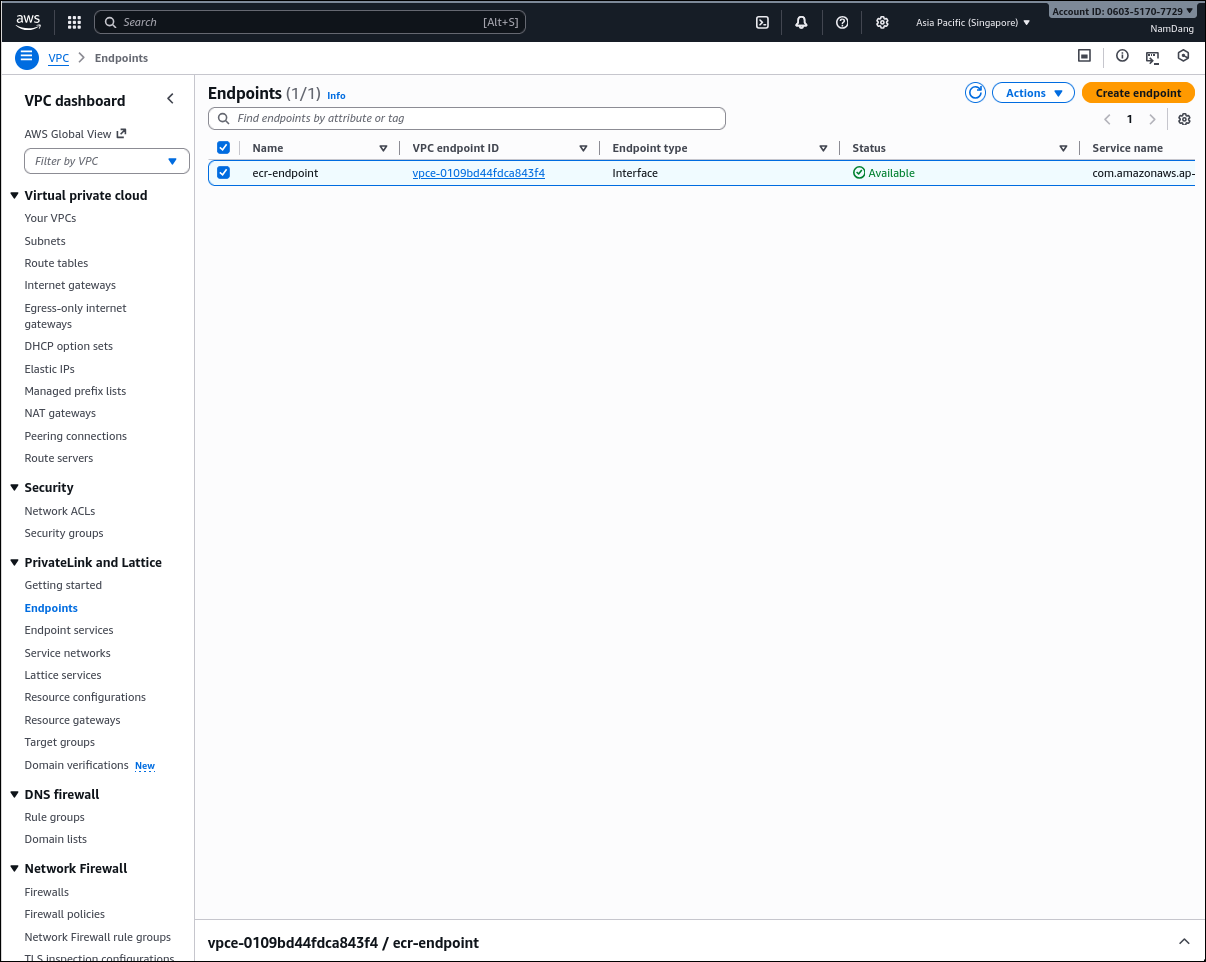

Endpoint Created

Step 4: Repeat for ECR API and CloudWatch Repeat the steps above to create two more Interface Endpoints:

  • ECR API: Search for ecr.api -> Name: ecr-api-endpoint.
  • CloudWatch Logs: Search for logs -> Name: cloudwatch-endpoint.

2. Create Gateway Endpoint (S3)

For Amazon S3, we use a Gateway Endpoint, which is cost-effective and uses routing tables instead of network interfaces.

  1. Click Create endpoint.
  2. Name tag: s3-endpoint.
  3. Services: Search for s3 and select com.amazonaws.ap-southeast-1.s3 (Type: Gateway).
  4. VPC: Select band-up-vpc.
  5. Route tables: Select the Route Tables associated with your Private Subnets.
  6. Click Create endpoint.

3. Verify All Endpoints

Once completed, navigate to the Endpoints list. You should see 4 active endpoints ensuring secure connectivity for your infrastructure.

  • ecr-endpoint (Interface)
  • ecr-api-endpoint (Interface)
  • cloudwatch-endpoint (Interface)
  • s3-endpoint (Gateway)

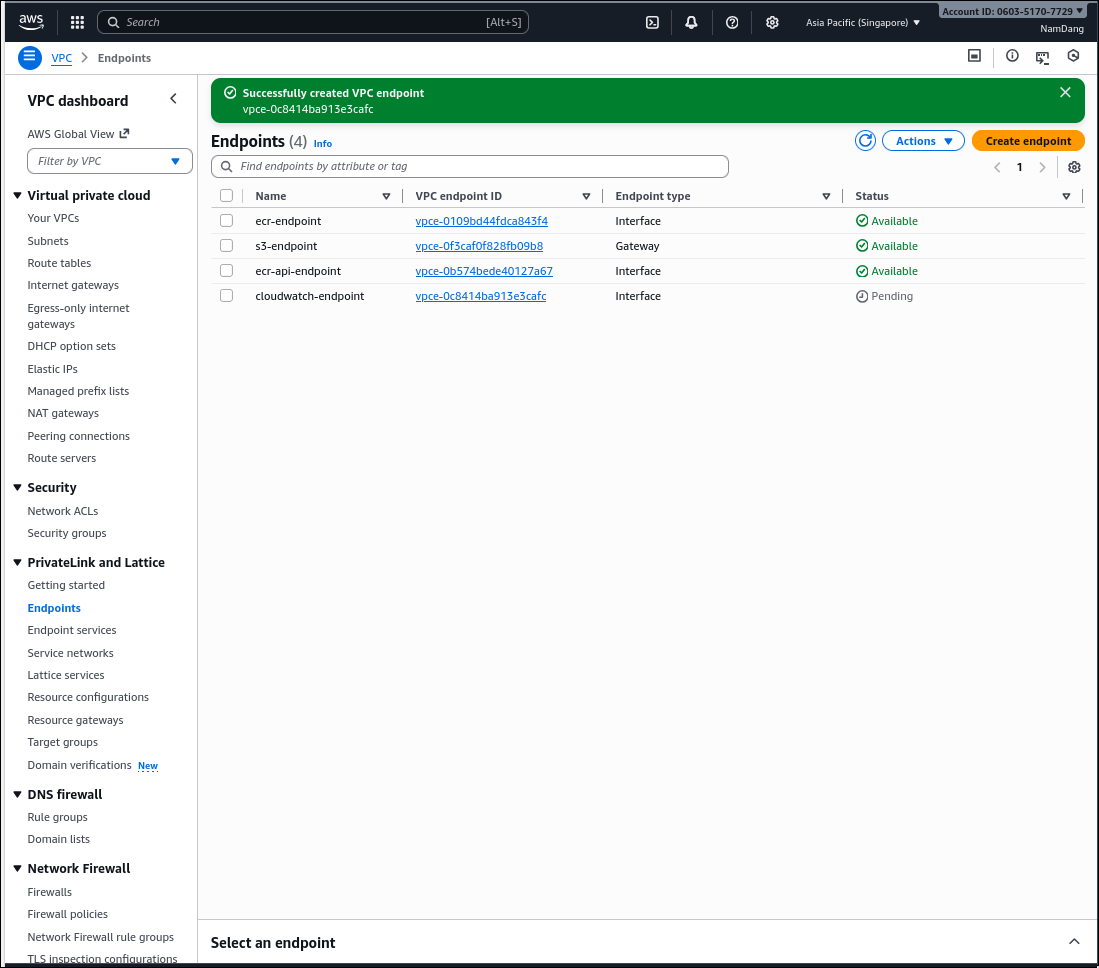

List of Created Endpoints
