Introduction

1. High-Level Architecture

The IELTS BandUp platform is built on a robust, highly available architecture on AWS. The system is designed to handle user traffic securely while providing low-latency access to study materials and AI-powered features.

2. Core AWS Services

To achieve the goals of scalability, security, and high availability, we utilize the following key AWS services:

Networking & Content Delivery

  • Amazon VPC (Virtual Private Cloud): The foundational network layer. We utilize a custom VPC with isolated Public and Private subnets to strictly control traffic flow.
  • NAT Gateway: Allows instances in private subnets (like our Backend containers) to access the internet for updates or external API calls without being exposed to incoming public traffic.
  • Application Load Balancer (ALB): Distributes incoming application traffic across multiple targets (containers) in different Availability Zones, ensuring fault tolerance.
  • Amazon Route 53: A scalable Domain Name System (DNS) web service used for domain registration and traffic routing.

Compute & Containers

  • Amazon ECS (Elastic Container Service) on Fargate: A serverless compute engine for containers. We use Fargate to run both our Next.js Frontend and Spring Boot Backend, removing the need to provision or manage servers.
  • Amazon ECR (Elastic Container Registry): A fully managed container registry where we store, manage, and deploy our Docker container images.

Database & Storage

  • Amazon RDS (Relational Database Service): We use PostgreSQL in a Multi-AZ deployment (Primary and Standby) to ensure data durability and disaster recovery for user profiles and test data.
  • Amazon ElastiCache (Redis): Acts as an in-memory data store to cache frequent queries and manage user sessions, significantly improving application performance.
  • Amazon S3 (Simple Storage Service): Stores static assets, media files (audio for listening tests), and user-generated content securely.

AI & Serverless Integration

To power the intelligent features of BandUp (Writing/Speaking Feedback, Flashcard Generation), we use a Serverless approach:

  • Amazon Bedrock & Google Gemini API: The core Generative AI models used to analyze user inputs and generate personalized study feedback.
  • AWS Lambda: Serverless compute functions that orchestrate the AI workflow, connecting the application to AI models.
  • Amazon SQS (Simple Queue Service): Decouples the backend from the AI processing layer, allowing requests to be queued and processed asynchronously to prevent system overload.
  • Amazon API Gateway: Acts as the “front door” for the AI services, managing RESTful API calls securely.

DevOps & CI/CD

  • AWS CodePipeline: Automates the release pipelines for fast and reliable application and infrastructure updates.
  • AWS CodeBuild: Compiles source code, runs tests, and produces software packages (Docker images) ready to deploy.

Security

  • AWS WAF (Web Application Firewall): Protects the web application from common web exploits.
  • AWS Secrets Manager: Securely stores and manages sensitive credentials (database passwords, API keys) throughout their lifecycle.

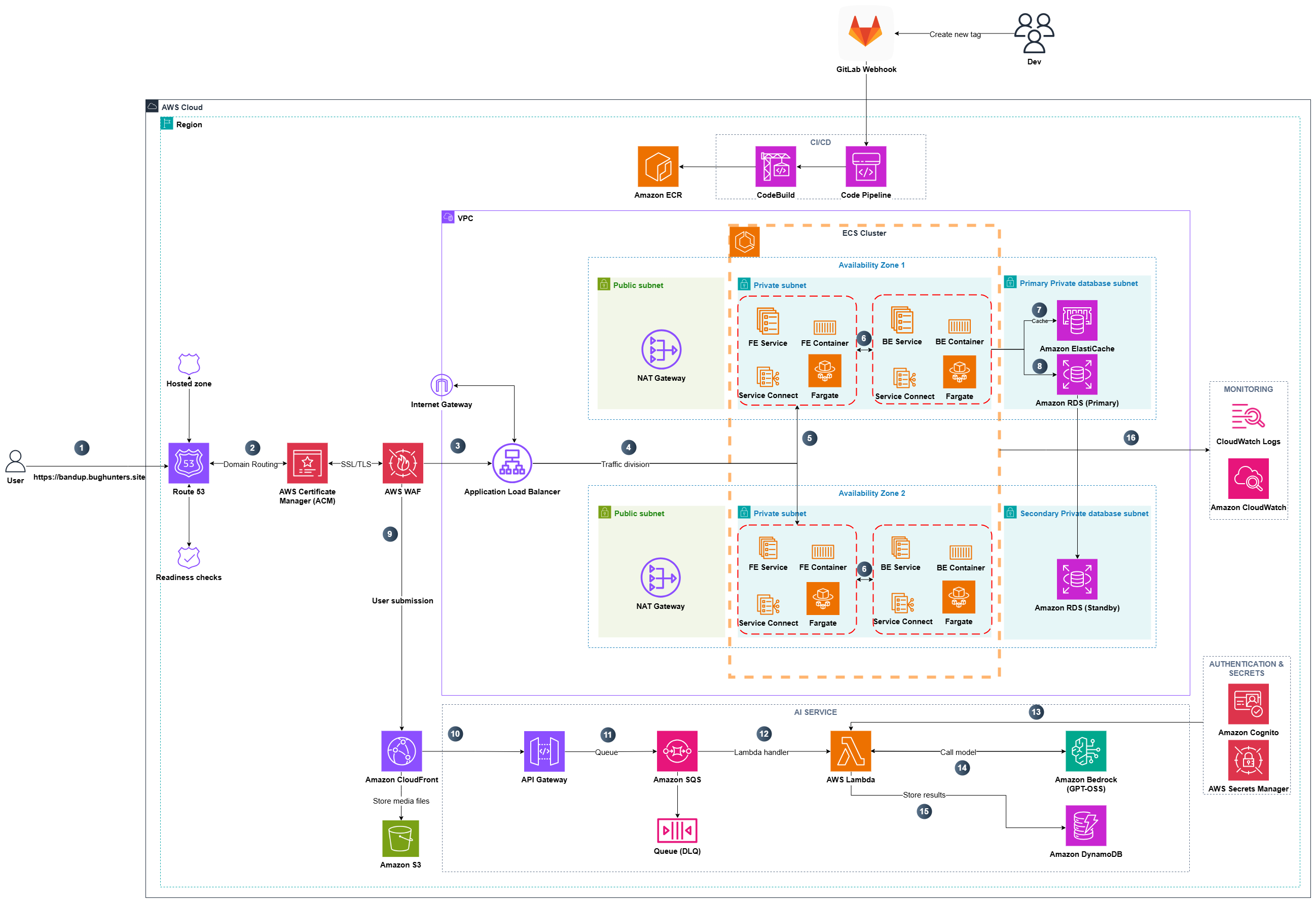

Architecture Diagram
